An indoor industrial telephone has a different enemy from an outdoor one. It is not rain -
it is people, forklifts, dust, vibration and twenty years of being grabbed with a work glove.
An office telephone put in a workshop, a plant room or a pump house does not last, and it
fails in the least helpful way: the handset cord goes, the hook-switch sticks, the keypad
stops responding, and nobody notices until somebody needs it.

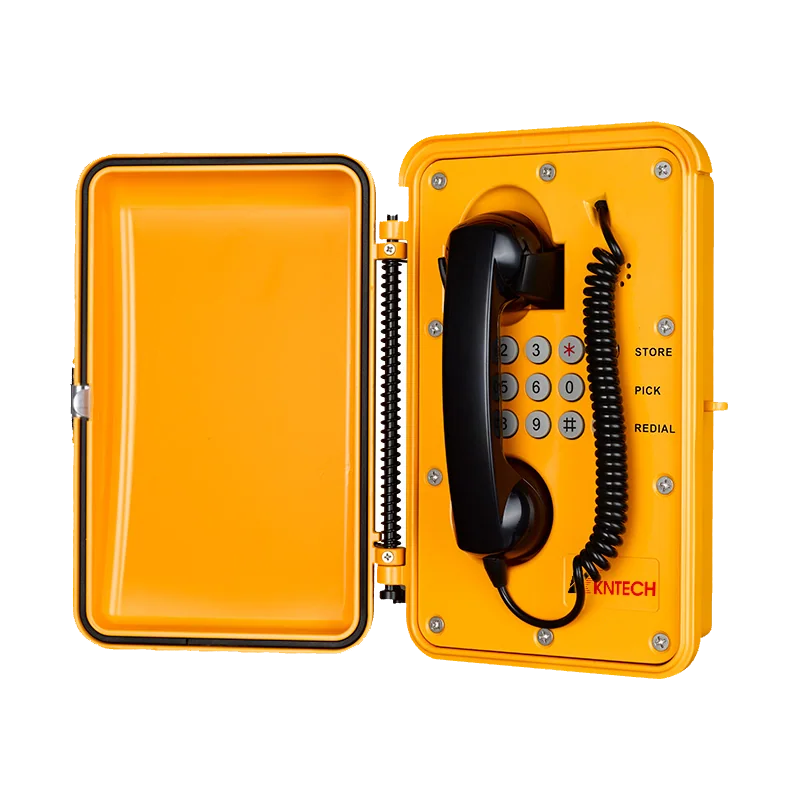

The KNSP-01T3J answers that with construction rather than features. The body is die-cast
aluminium alloy, with vandal and tamper-resistant hardware, and it measures 320 x 205 x 120 mm
at 5.3 kg - which tells you plainly what kind of object it is. The keypad is silicon, sealed
against dust and moisture, and the housing is rated IP66 whether or not it is exposed. Indoors
that rating is not about weather; it is about wash-down, dust and the airborne oil that coats
everything in a machine hall.

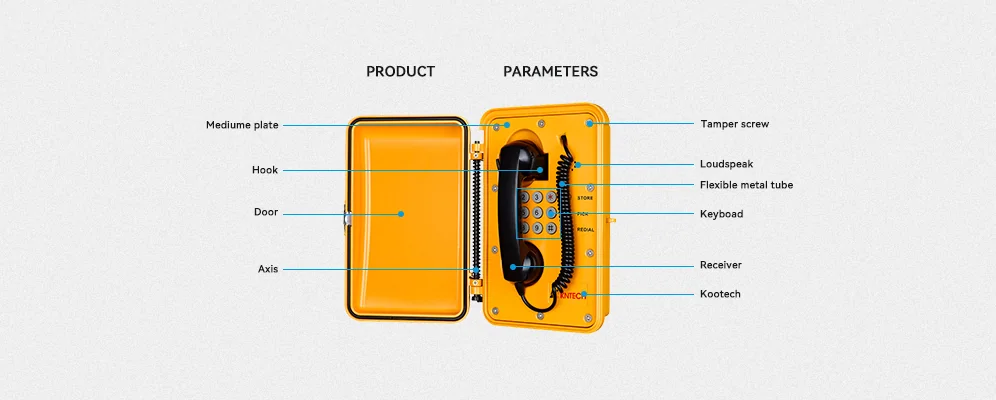

Two details matter more than they sound. The hook-switch is a magnetic reed type, with no
mechanical contact to wear or corrode - which is exactly the part that fails first on a
conventional telephone in industrial use. And the handset has a hearing-aid compatible
receiver with a noise-cancelling microphone on an industrial curly cord with stainless steel
cable protection, so the cord survives being yanked and the microphone does not send the whole
plant down the line.
As an analogue set it is deliberately simple: PSTN, DTMF dialling, RJ11 screw terminals,
and compatibility with SPC exchange PABX and dispatching systems on a feeding voltage of 33 to
60 V. KNTECH quote MTBF of 100,000 hours and MTTR of two hours, ringing above 70 dB(A), and a
maximum line distance of 7 km. There is a full keypad with memory for ten programmable
speed-dial numbers, which in practice means the control room, security and the gatehouse are
one button each. Line integrity wiring is available so the telephone system can check the unit
is still operational, where the PABX supports it - worth asking for, because it turns an
unnoticed failure into a reported one.
It also carries lightning protection to ITU-T K.21, which matters for any indoor telephone
on a long copper run to another building, and it is certified against RCM AS/NZS CISPR 32,
AS/CA S004, AS/NZS 60950.1:2015 and EN 50121 for railway electromagnetic compatibility.
