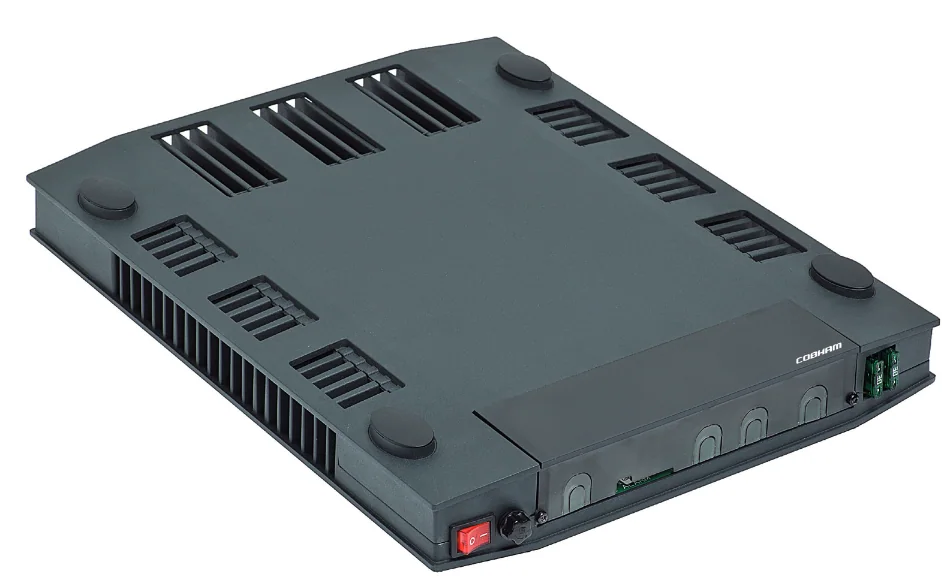

The power supply module that a SAILOR 6081 PSU and charger is built from.
The SAILOR 6080 is the power supply module used to build a SAILOR 6081 PSU and charger. Cobham Satcom rates each module at 270 W, and up to four combine for as much as 1200 W with load sharing.
A module of the SAILOR 6081, not a stand-alone supply
270 W per module, up to four modules
Added to extend an installation rather than replace it
DC output28 V nominal, or per battery configuration
Description
The 6080 is a module rather than a boxed power supply. A SAILOR 6081 PSU and charger is
built out of them: one module for a small installation, up to four for a large one, sharing
the load between them. That is why it belongs in a bill of materials as a quantity rather
than as a single item.
It is worth being precise about the rating. Our printed catalogue lists this line at
300 W, while Cobham Satcom's current product data rates each 6080 module at 270 W, with four
modules giving up to 1200 W. We quote the manufacturer's figure, and the exact rating for
your configuration is confirmed against their datasheet at quotation.
Because the architecture is modular, the question at design stage is not which supply to
buy but how many modules the installation needs now and how much headroom to leave. Adding a
module later is a far cheaper route to more power than replacing a fixed-rating supply, and
that is the main reason this arrangement gets specified.
Features
270 W per module. Cobham Satcom's current rating. Our printed
catalogue shows 300 W for this line; the manufacturer's figure is the one we quote.
Up to four modules. Combined for as much as 1200 W, with load
sharing.
Extendable. A module can be added later instead of replacing a
fixed-rating supply.
Part of the 6081. Specified as a quantity within a PSU and charger,
not as a stand-alone unit.
28 V nominal DC. Or according to the battery configuration.
Applications
Building a new 6081. Module count set by the installation's load.
Extending an existing installation. Adding capacity as equipment is
added.
Spares holding. A module held so one failure does not take the whole
supply down.
Offshore facilities. Radio rooms on platforms and FPSOs.
Support & Documents
PT Vivo Asia Teknologi Indonesia supplies and services radio and GMDSS equipment as
part of a compliant installation rather than as a boxed item. Our scope typically covers:
Selection against the vessel's or facility's carriage requirements and area of operation.
Installation design: antenna siting, feeder runs, power supplies and battery backup.
Supply, installation, termination and commissioning.
Radio survey support, and coordination with class and flag administration where needed.
Programming, channel plans and licence documentation.
Annual testing, battery replacement and ongoing maintenance.
Approvals, frequencies and electrical details vary by variant and market and are
confirmed against the current manufacturer datasheet at quotation stage. Tell us the
vessel type or site, the flag and the equipment already installed, and we will come back
with the right variant and a full bill of materials.
Use the enquiry button above for a datasheet, a specification or a project quotation.
