An IMPRES remote speaker microphone with two PTT buttons, Nexus and 3.5 mm jacks, IP68 and TIA4950 rated.

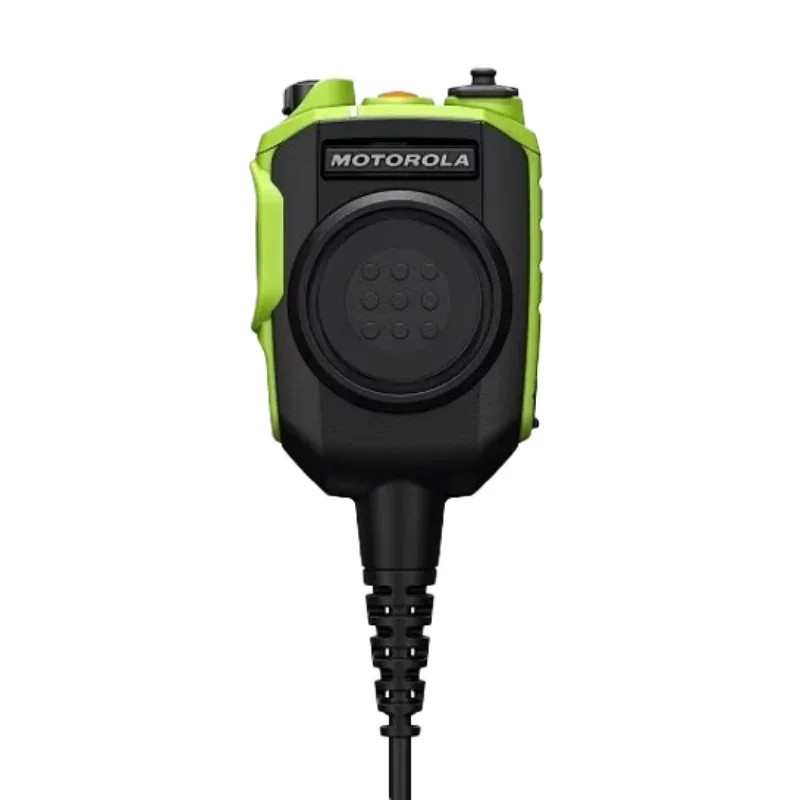

The Motorola NS750 IMPRES remote speaker microphone has two press-to-talk buttons, a Nexus connector and a 3.5 mm jack, and is IP68 and TIA4950 (UL) rated.
Two PTT buttons: a large front PTT and a side PTT
Nexus connector for a 3rd-party headset, plus a 3.5 mm audio jack
IP68 rated and TIA4950 (UL) rated for hazardous locations
A remote speaker microphone moves the speaker and the press-to-talk from the radio on the
belt up to the shoulder, which is what makes a radio usable while working. The user hears
traffic without leaning down, and can transmit without unclipping anything. On a site where
people are wearing gloves, harnesses and hearing protection, that difference decides whether
the radio is actually used.
The NS750 carries two PTT buttons: a large front PTT for gloved-hand use and a side PTT for
one-handed operation without letting go of a tool or a rail. For audio, a Nexus connector
accepts a 3rd-party headset (including communication-enabled hearing protection), while a
3.5 mm jack takes conventional earpieces, so one accessory covers both a high-noise ear
defender and a discreet earpiece.
It is IP68 rated for full water and dust ingress protection, and TIA4950 (UL) rated so
that fitting it does not compromise the radio's hazardous-location approval - a reason to
specify the manufacturer's accessory rather than a generic equivalent.
Features
Two PTT buttons. A large front PTT and a side PTT for gloved or
one-handed use.
Nexus connector. Connects a 3rd-party headset, including
communication-enabled hearing protection.
3.5 mm audio jack. Takes conventional earpieces for quieter or more
discreet use.
IP68 rated. Full protection against water and dust ingress.
TIA4950 (UL) rated. Keeps the radio's hazardous-location approval
intact when fitted.
Short cable. Less to snag on structure, ladders and harnesses.
IMPRES series. Matched to the radio's audio system.
Applications
High-noise areas. Used with communication-enabled hearing
protection.
Working at height and in confined spaces. Where reaching a belt radio
is impractical.
Offshore decks and process areas. Noise plus PPE.
Security and response teams. Where discreet earpiece use is
preferred.
Support & Documents
PT Vivo Asia Teknologi Indonesia supplies and services radio and GMDSS equipment as
part of a compliant installation rather than as a boxed item. Our scope typically covers:
Selection against the vessel's or facility's carriage requirements and area of operation.
Installation design: antenna siting, feeder runs, power supplies and battery backup.
Supply, installation, termination and commissioning.
Radio survey support, and coordination with class and flag administration where needed.
Programming, channel plans and licence documentation.
Annual testing, battery replacement and ongoing maintenance.
Approvals, frequencies and electrical details vary by variant and market and are
confirmed against the current manufacturer datasheet at quotation stage. Tell us the
vessel type or site, the flag and the equipment already installed, and we will come back
with the right variant and a full bill of materials.
Use the enquiry button above for a datasheet, a specification or a project quotation.
